Description
Add the final immersive and ultimate touch to your setup!
Compatible with HDfury Diva, our Ambient Leds solution will render the perfect immersive light effect for any SDR/HDR or LLDV content.
12b PCH Led technology and HDfury nanoseconds operations ensure the show is at the real-time apex!
Available in Single 1×56 Leds or Double 2×56 Leds version (if you do not have a white wall behind the TV, it is recommended to us Double Kit and not the Single one)

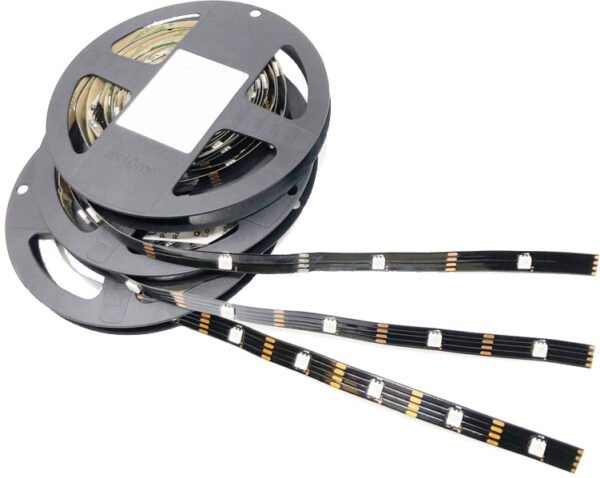

Simply stick our Ledstrips behind your display and connect to your HDfury Diva device to video drive it!
Add Ambient Light effect for any HDMI sources.
Compatible with HDfury Diva .
12b PCH Led for perfect colors from any contents.
Support SDR/HDR and LLDV content. (No support for normal DV yet)
The double Kit version allows doubling the light effect intensity.
1×56 (Single Kit) or 2×56 (Double Kit) PCH 12b LEDs available in 7 lengths:
2cm gap for 21-25″ (H:24cm/9.5″ – W:40cm/15.5″)
3cm gap for 27-35″ (H:34cm/13.5″ – W:60cm/23.5″)
4cm gap for 38-50″ (H:46cm/18″ – W:79cm/31″)
6cm gap for 55″ (H:67cm/26.5″, W:117cm/46″)
7cm gap for 60-65″ (H:76cm/30″, W:132cm/52″)
8cm gap for 70-85″ (H:84cm/33″, W:154cm/60.5″)
9cm gap for 85+ (H:94cm/37″, W:165cm/65″) – Only available in Double 2×56 Leds version.
It is recommended to select a kit at least 5cm or 2″ less than your display dimension.
Refer to hereby linked chart in CM or INCH for Single Kit (1×56 LEDs) and to CM or INCH chart for Double Kit (2×56 LEDs).
2x Single Ledstrips or 1x Double Ledstrip possible per display for increased effect and brightness (USB Y cable supplied to share power)
HDFury Diva Ambient LEDs install instructions.
Safety
Always disconnect your TV from the power supply during installation.
Make sure your TV back panel is clean from any dust.
LEDstrip Installation
Start LEDstrip install at the bottom right of the TV back panel.
Make sure each segment of the LEDstrip is perfectly centered with the display side where it is applied.
Complete the 4 segments installation.
Connection to power and Diva using Y cable
Using the supplied Y cable, connect Power, Diva, and LEDstrip all together.
1. Connect to supplied 5V 4A Power adapter.
2. Connect to Diva LED Control input.
3. Connect to LEDstrip USB previously installed.
NOTE: you can extend USB power or led strip connection using a standard USB cord & Diva LED Control can be extended using any earphone 2.5mm jack extender.
