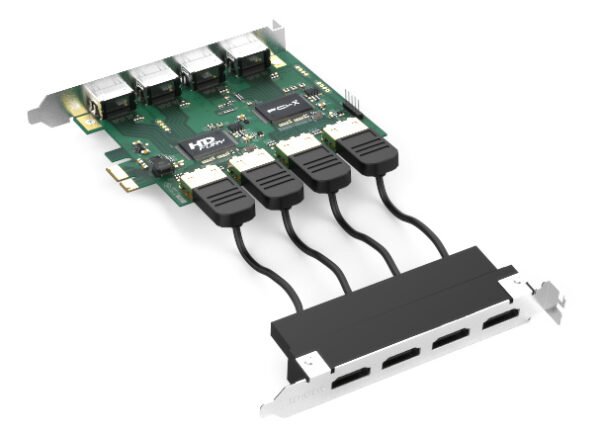

Hdfury PCI MATRIX 44UHD
The HDfury PCI-MX 44UHD is the world first HDMI Matrix Switch for HTPC and streaming computer, it allows you to route 4 HD sources to 4 HD displays. The 4×4 HDMI matrix allows 32 viewing combination of 4 HD sources on 4 HDTVs.
The 4×4 HDMI Matrix switch utilizes the latest switching technology to provide Instant Switching. Unlike most of the switching devices on the market, the HDfury PCI-MX device can instant switch without any flash on others screens (This feature might be alterable by the capability of the connected display to handle pixel clock changes ).
The HDfury PCI-MX 44UHD supports SD, HD, Full HD and UHD (up to 4K30) . The unit is powered by one PCI-X slot available on any cpu motherboard.
In addition, the PCI-MX incorporates sophisticated EDID management through a windows EDID application and an USB service port for matrix control.
REMIX/CUSTOM and FIXED EDID mode are available
With this matrix switcher you don’t need to move equipment from room-to-room, nor do you have to buy duplicate equipment for the other rooms in your home.
This matrix provides 4 HDMI inputs, which allows you to connect the PS4, X1, cable box, blu-ray player, and/or the hdmi output of your Android/Apple smartphone.
The matrix supports 4K30 UHD, 3D video, 36-bit Deep Color, x.v.Color™, and high-definition multichannel audio, including Dolby TrueHD™ and DTS-HD Master Audio™
HDfury PCI Matrix 44UHD Key Features
- SD/HD/Full HD & UHD support.
- Up to 4K30 4:4:4 or 4K60 4:2:0.
- 4 HDMI inputs, 4 HDMI outputs.
- Instant Fast Switching without blinking (alterable by the connected display’s capability)
- 32 viewing combinations.
- EDID Management, USB service port for customization needs.
- REMIX/CUSTOM and FIXED EDID mode are available.
- As always furious features can be unlocked via USB.
Specifications:
- 4-IN 4-OUT HDMI Repeater with Equalizer
- Supports 4 HDMI input ports (Port 0/1/2/3) with on-chip EDID RAM for each port.
- Support HDMI/MHL dual mode in RX0 port.
- On-chip 4 HDCP RX ciphers which support Instant Port Switching (IPS).
- Supports 4 HDMI output ports with on-chip HDCP TX cipher for each port.
- Support 32 combinations of matrix switching.
- Support wide Frequency Range: 25MHz – 340MHz TMDS clock
- Supports 12-bit Deep Full HD, Full 3D and 4K2K video.
- Supports Standard Audio, DSD Audio and HD (HBR) Audio
- On-chip HDMI Receiver and Transmitter core which are compliant with HDMI 1.4 specification
- On-chip HDCP RX/TX Engines support Repeater and are compliant with HDCP 1.4 specification
- HDMI-CEC passthrough
- Supports Standard Audio, DSD Audio and HD (HBR) Audio
- Source Signal Detection in Low Power mode
- On-chip Power Regulator which provides regulated 3.0V and 1.6V power
- Low stand-by current at power down mode
- Gold plated to ensure smooth, corrosion-free connections
Easy 1-2-3 PCI-MX setup
1. Turn off and open computer chassis. Install PCI-MX and connect the USB internal cable.
2. Turn on computer and make sure you have the silabs driver installed (see download section).
3. Run the Matrix command line tool to configure the unit as you wish.
